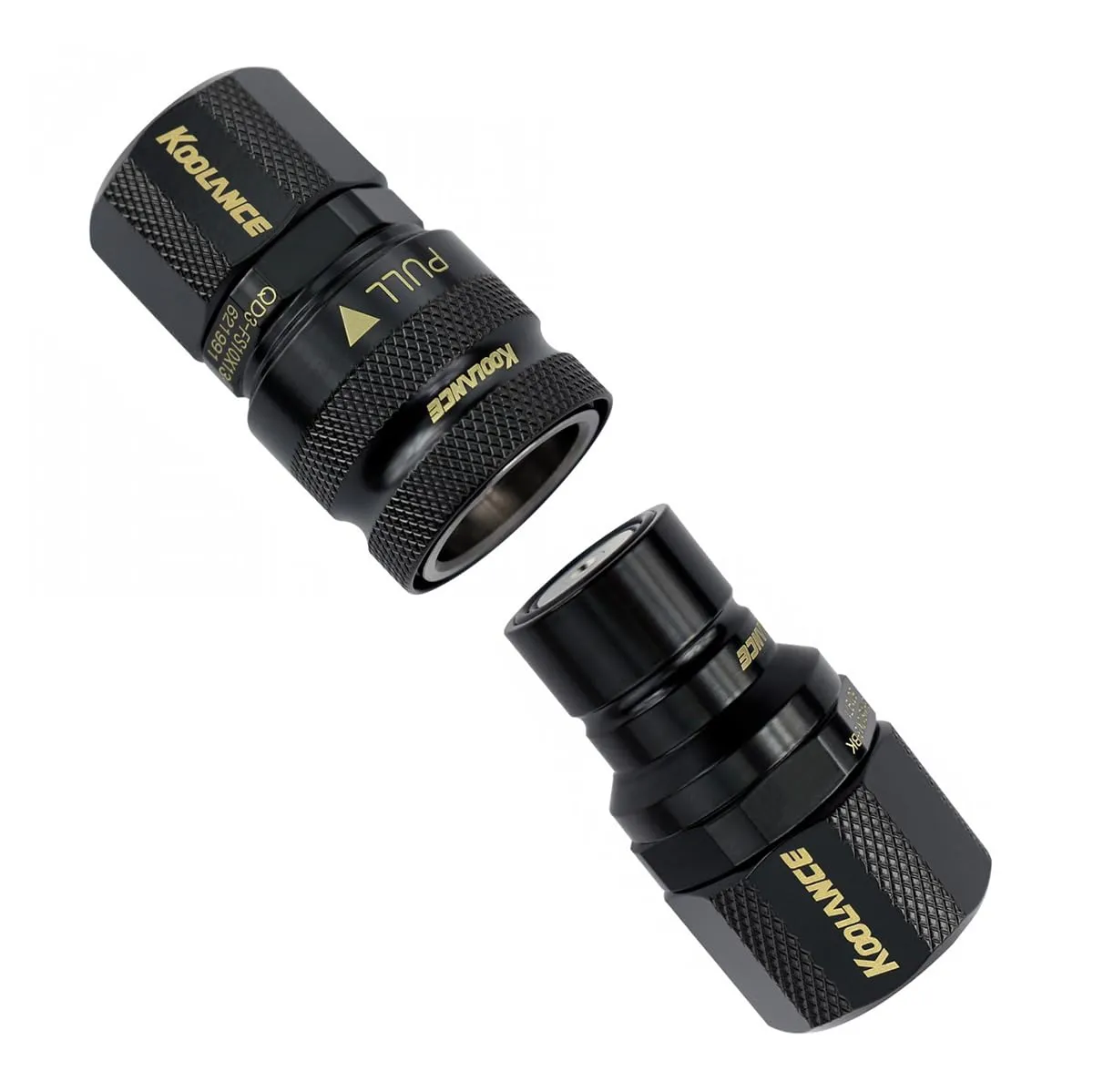

This bundle includes the male and female QDC Quick Disconnect No-Spill Coupling for 10mm ID, 13mm OD tubing Quick disconnect no-spill coupling with automatic shutoff. 10mm (3/8in) ID female straight connection with compression fitting. After pulling the ring on the female QDC side, the quick-disconnect fittings will separate. Liquid on both sides will be automatically obstructed with approximately 0.2ml freed. Coolant volume lost upon disconnection will rise with internal pressure higher than 0.5kgf/cm2 (7psi). General Weight: 0.21 lb (0.10 kg) Max No-Spill Pressure: 0.5kgf/cm2 (7psi) Max Pressure Tolerance at 25C: 8kgf/cm2 (113.8psi) Max Temperature Tolerance: 80C (176F) Min Pressure Tolerance at 25C: -1.0kgf/cm2 (-14psi) Min Storage Temperature (*No Freezing): -20C (-4F) Seal Material: EPDM (Water/Glycol Liquids) Wetted Materials: Brass, Stainless Steel, EPDM KoolnceQuick disconnect no-spill coupling with automatic shutoff. 10mm (3/8in) ID male straight connection with compression fitting. General Weight: 0.13 lb (0.06 kg) Max No-Spill Pressure: 0.5kgf/cm2 (7psi) Max Pressure Tolerance at 25C: 8kgf/cm2 (113.8psi) Max Temperature Tolerance: 80C (176F) Min Pressure Tolerance at 25C: -1.0kgf/cm2 (-14psi) Min Storage Temperature (*No Freezing): -20C (-4F) Seal Material: EPDM (Water/Glycol Liquids) Wetted Materials: Brass, Stainless Steel, EPDM Model: TR-90911-90930

• Package Dimensions ‏ : ‎ 6 x 4 x 1 inches; 10.56 ounces
• Date First Available ‏ : ‎ September 28, 2024
• Manufacturer ‏ : ‎ Koolance
• Country of Origin ‏ : ‎ USA
