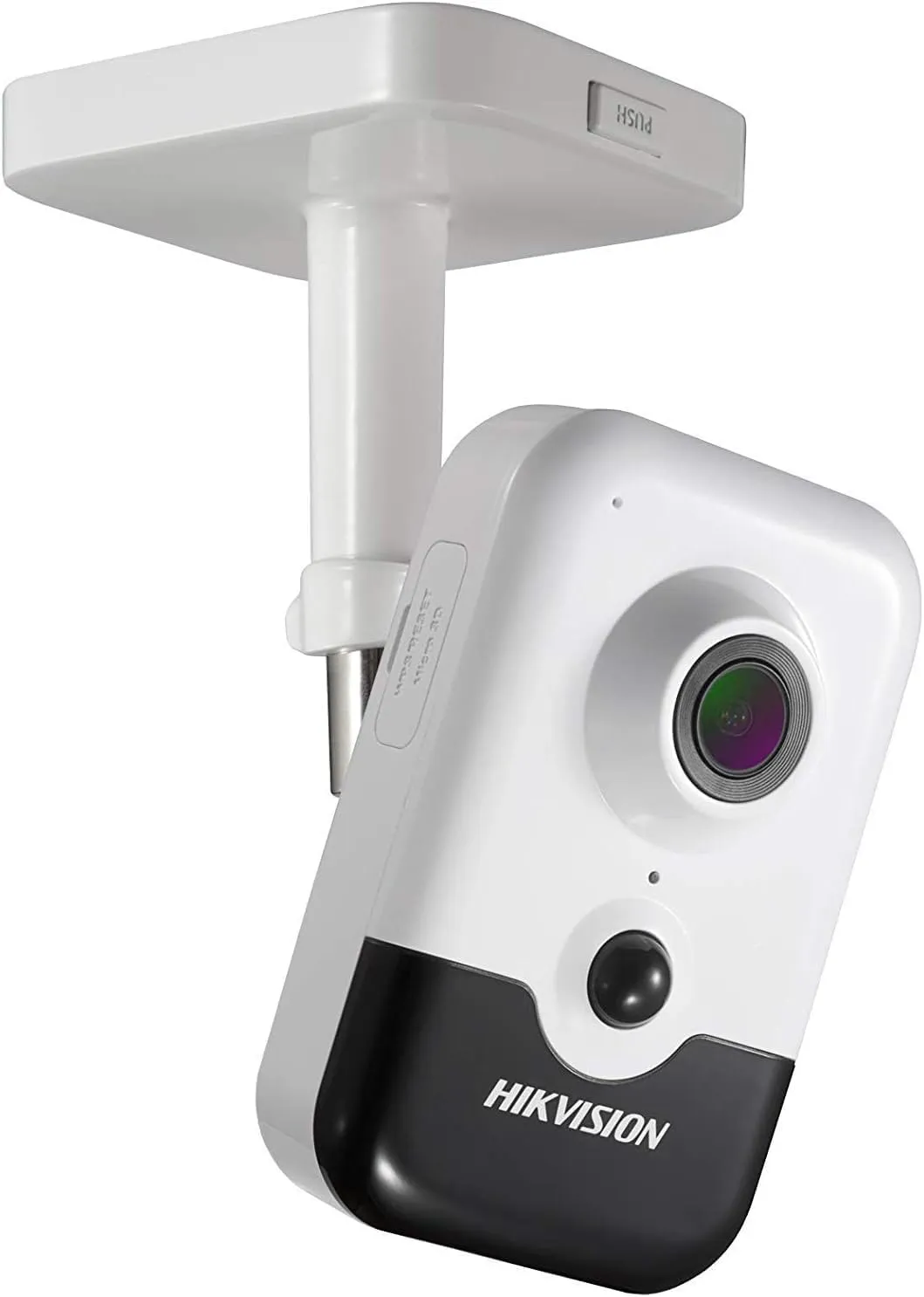

Camera
Image Sensor: 1/3" Progressive Scan CMOS
Min. Illumination: Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 lux @(F1.6, AGC ON), 0 lux with IR
Lens: 2.8 mm, horizontal FOV: 98°, vertical FOV: 55°, diagonal FOV: 114°
Adjustment Range: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Wide Dynamic Range: 120 dB
Digital noise reduction: 3D DNR
Focus: Fixed

Compression Standard
Video Compression: H.265 /H.265/H.264 /H.264/MJPEG
Video bit rate: 256Kbps~16Mbps
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)

Max. Image Resolution:2688 × 1520
Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240), 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Network
Network Storage: microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6

Interface
Audio: 1 built-in mic, 1 built-in speaker, mono sound
Communication Interface: 1 RJ45 10M / 100M Ethernet interface
On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button: Yes

Audio
Environment Noise Filtering: Support
Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz

Wi-Fi Specification
Wireless Standards: IEEE802.11b, 802.11g, 802.11n
Security: WPA, WPA2
Transmission Rate: 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
Wireless Range: 50m(depend on environment)

General
Power Supply: 12 VDC ± 25%, PoE (802.3af Class3)
IR Range: Up to 10m
Dimensions: 102.8 mm × 65.2 mm × 32.6 mm (4.1" × 2.6" × 1.3")
Weight: Camera: Approx. 128 g (0.3 lb.)
